22300 Thru-the-Deck Capstan

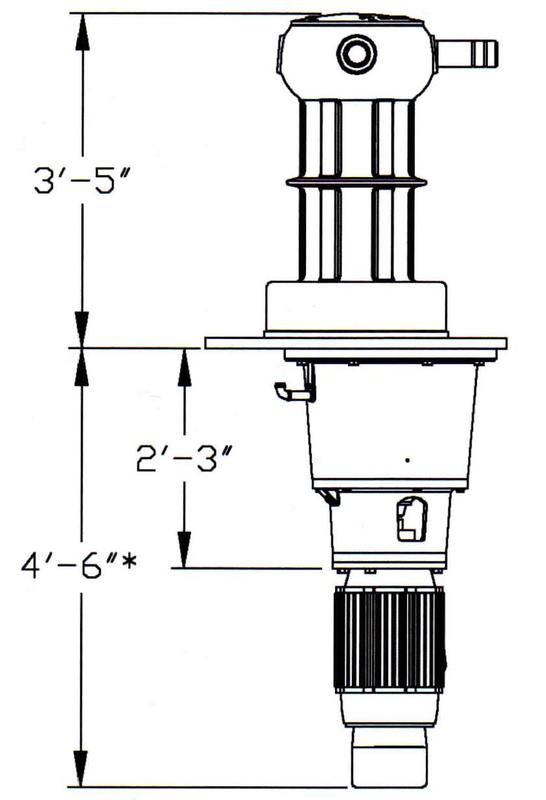

The 22300 thru-the-deck capstan from Schoellhorn-Albrecht has been the trusted capstan for barge moving, buoy handling, and general line handling by U.S.C.G., U.S.A.C.E., and commercial shipyards worldwide. To learn more about the 22300 specifications, select the View Drawings button or view the table below.

Features:

Thru-the-deck mounted, watertight, bronze-bushed cast capstan barrel
Single or multi-speed, driven through a spur gear reduced differential speed reducer
Motor / brake and differential speed reducer are suspended from the base forming a capsule drive unit
Speed reducer operates in a continuous oil bath and all bronze bushings have pressure grease fittings

Options:

Pneumatic, Hydraulic, Explosion Proof Motors
Control Packages

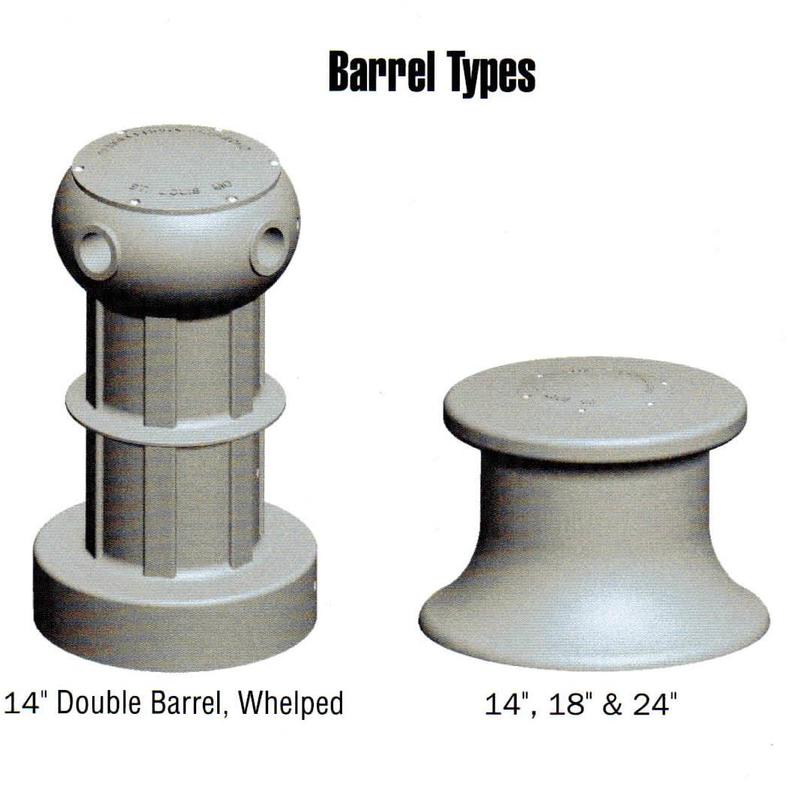

Special Barrels

22300 Thru-the-Deck Capstan

Download the Product Flyer PDF

Specifications

Motor HP	Barrel Size	Starting Pull (lbs)	Running Pull (lbs)	FPM
10	14	14,500	5,300	50
10	14	22,000	8,000	34
15	14	22,000	8,000	50
20	14	29,400	10,700	50
25	14	36,800	13,400	50
10	18	11,200	4,100	65
10	18	17,000	6,200	43
15	18	17,000	6,200	65
15	18	25,800	9,400	43
20	18	22,800	8,300	65
10	24	8,500	3,100	86
10	24	12,900	4,700	57
15	24	12,900	4,700	86
20	24	17,000	6,200	86
10/10	14	14,500/30,000	5,300/10,700	50/25
15/15	14	22,000/44,000	8,000/16,100	50/25
20/20	14	29,400/59,100	10,700/21,500	50/25
10/10	18	11,200/22,800	4,100/8,300	65/32
15/15	18	17,000/34,300	6,200/12,500	65/32
20/20	18	22,800/45,900	8,300/16,700	65/32
10/10	24	8,500/17,000	3,100/6,200	86/43
15/15	24	12,900/25,800	4,700/9,400	86/43
20/20	24	17,000/34,300	6,200/12,500	86/43

Single Speed Models Available

100,000 LBS BOLLARD PULL RATING ON ALL ABOVE CAPSTANS
Product details and specifications are subject to change without notice. For additional information, drawings, and specifications, contact us.
