SA1014 Capstan/Carpuller

Schoellhorn-Albrecht's SA1014 capstan/carpuller model is used for everything from the railroad industry to barges and the variety of options allow you to find the one to meet your needs.

Features:

Cast Steel Capstan Barrel
Double Taper Roller Bearings for Axial and Radial Load Control
Spring Loaded Double Lip Seals
High Strength Ductile Iron Gear Box
Marine Sealed Motor
Positively Lubricated, Oil Immersed Gear Set with Reservoir and Sump
Crane and Hoist Duty (High Starting Torque) Motors
Precision Helical / Worm Gear Reduction Sets
Heat Treated / High Alloy Steel Shafting

Options:

100% Magnetic Disc Brake
Pneumatic, Hydraulic, Explosion Proof Motors
Custom Control Packages
Special Barrels

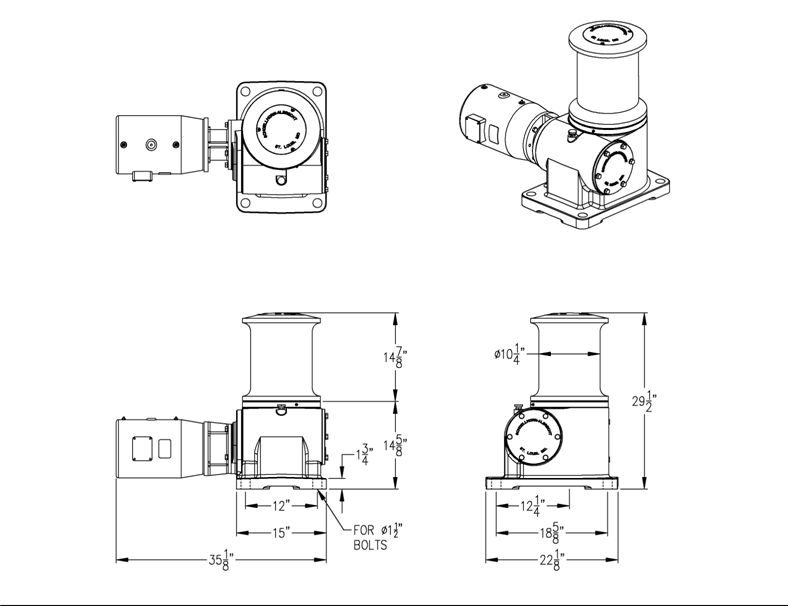

Schoellhorn-Albrecht Capstan/Carpuller

Download the Electric Product Flyer

Download the Hydraulic Product Flyer

Specifications

Model No.	Motor	Starting Pull	Running Pull	Static (Bollard)Pull	Nominal Line Speed (FPM)	Barrel Diameter (in)
SA1014-10-28	10	25,000	10,000	35,000	28	10
SA1014-10-40	10	20,000	7,500	35,000	40	10
SA1214-10-48	10	16,625	6,250	35,000	48	12
SA1014-7.5-28	7.5	20,000	7,500	35,000	28	10
SA1014-7.5-40	7.5	15,000	5,500	35,000	40	10
SA1214-7.5-48	7.5	12,500	4,500	35,000	48	12
SA1014-5-20	5	20,000	7,500	35,000	20	10
SA1014-5-28	5	15,000	5,500	35,000	28	10
SA1014-5-40	5	10,000	3,800	35,000	40	10
SA1214-5-48	5	8,250	3,000	35,000	48	12
